All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket

  • 1
  • 2

Brand Name : JQ or OEM/Customize

Model Number : ADSS -144B1

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1 Kilometer

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 8000 kilometers per month

Delivery Time : 2-5days

Packaging Details : Wooden Drum

Type : Outdoor Fiber Optic Cable

Number of Conductors : ≥ 10

Fiber type : G652D/G657A1/G657A2/OM1/OM2/OM3/OM4

Length : As required

Color : Black/Customized

Strength member : Aramid yarn

Jacket : Double PE Sheath

Loose tube material : PBT

Outer Sheath : PE/MDPE/HDPE or as your request

Package : Wooden Drum/Customized

Application : Aerial, Overhead

Oem : Available

Span : 50m-1000m

Fiber Attenuation : ≤0.4dB/km

Strength Number : FRP, Kevlar Aramid Yarn

Packing : Carton Drum

Cable Model : Double Jacket/single jacket

Temperature : -40℃ to +70℃

Strength Member Material : FRP/ARAMID YARN

Drum Length : 5km/drum

Number Of Conductors : 12core

Sample : Free

Sheath Material : PE or customized/HDPE/MDPE

Operating Temp : -20℃~+60℃

Cable Sheath : PE

Tube Meteriall : PBT

Strength Member : FRP, Kevlar Aramid Yarn

Core : 48/96/144 Cores

Contact Now

ADSS Cable Structure and Design

ADSS cable adopts a loose tube stranded construction for reliable fiber protection. The optical fibers, 250μm, are housed in loose tubes made from high-modulus plastic, providing excellent mechanical strength and durability.

Each tube is filled with a water-blocking gel, preventing moisture ingress and protecting fibers from long-term water damage. The tubes and fillers are stranded around a central FRP (Fiber Reinforced Plastic) strength member, creating a compact and round cable core that is completely non-metallic, safe for use near power lines.

The cable core is filled with filling compound for additional water blocking, then covered with a thin PE (polyethylene) inner sheath to provide a smooth and stable structure. A stranded layer of aramid yarns is applied over the inner sheath, offering outstanding tensile strength and resistance to mechanical stress. Finally, the cable is completed with either a PE outer sheath for general outdoor use or an AT (anti-tracking) outer sheath for installation in high-voltage environments (≥110 kV).

Additional Benefits

  • Dielectric Design: No metallic elements, eliminating grounding requirements.

  • Long Service Life: Excellent UV resistance and weatherproof performance.

  • Lightweight and Easy to Install: Self-supporting design reduces installation cost and time.

  • Customizable: Available in various fiber counts (up to 288 cores) and sheath materials to suit different span lengths and project needs.

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket

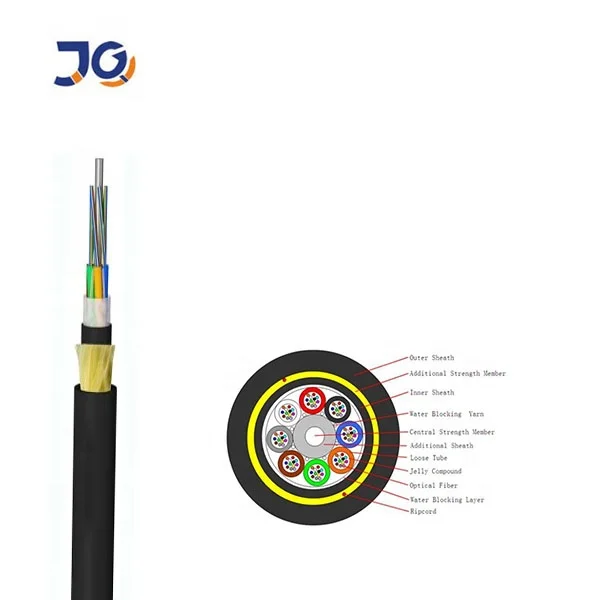

Cable Structure

  • PE Outer Jacket: Double-jacket design for enhanced durability and weather resistance

  • FRP Central Strength Member: Provides stable support and maintains cable shape

  • Rip Cord: Easy and quick sheath removal during installation

  • Fiber Jelly Filling: Water-blocking compound for moisture protection

  • Loose Tube: Holds fibers securely and allows free movement to minimize stress

  • Optical Fibers: High-quality single-mode or multi-mode fibers

  • Aramid Yarns: High tensile strength to withstand mechanical load

Key Characteristics

  • Low Attenuation and Dispersion: Stable transmission performance even under changing environments

  • Strong Mechanical Properties: Withstands tension, crush, and impact for reliable long-term use

  • Excellent Flexibility: Good bending radius, easy to route and install

  • Compact Design: Small outer diameter, lightweight, and space-saving construction

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket

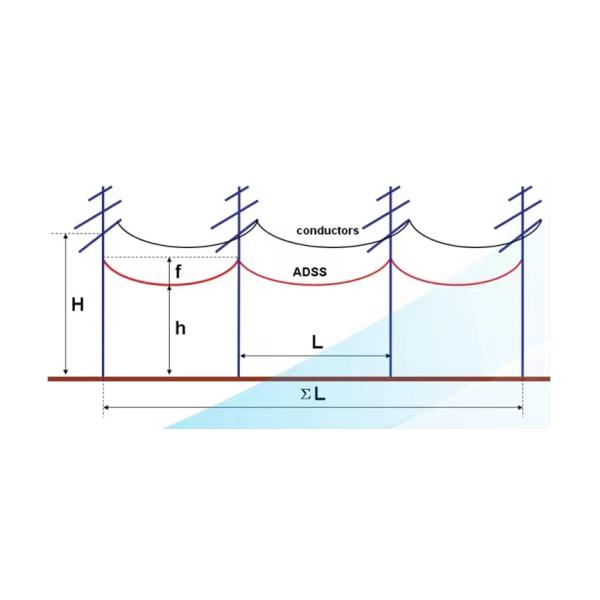

Application:

* The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.
* For overhead power lines under 110kV, PE outer sheath is applied.
* For power lines equal to or over 110kV, AT outer sheath is applied.

Specification:

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket

Company:

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double JacketAll Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket

WHY CHOOSE US:

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket

Certification:

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket

FAQ

1. Who Are We
We are a professional fiber optic cable manufacturer based in Guangdong China since 2017 Our products are exported to Africa South America Western Europe the Middle East Southeast Asia and South Asia We have a team of 11 to 50 experienced staff

2. How Do We Ensure Quality

  • Pre production samples are provided for approval before mass production

  • Every order undergoes strict final inspection before shipment

3. What Can You Buy From Us
Fiber Optic Cable FTTH Drop Cable Indoor and Outdoor Communication Cables and related accessories

4. What Services Do We Offer

  • Delivery Terms: FOB EXW

  • Payment Options: T T L C D P D A Credit Card PayPal Western Union Cash

  • Currencies: USD CNY

  • Languages: English Chinese

We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
