4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span

  • 1
  • 2
  • 3

Brand Name : JQ/OEM/Customize

Model Number : ASU

Certification : CE/ISO9001/RoHS/FCC

Place of Origin : Guangdong, China

MOQ : 1 Kilometer

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 8000 kilometers per month

Delivery Time : 2-5days

Packaging Details : Wooden Drum

Type : Outdoor Aerial Fiber Optic Cable

Number of Conductors : ≥ 10

Fiber type : G652D Single mode or as your request

Length : As required

Color : Customized

Strength member : FRP

Package : Wooden Drum/Customized

Application : Self-supporting aerial

Oem : Available

Number Of Cores : 2-144 core

Cable Sheath : HDPE/ MDPE/PE

Fiber Options : G652D ,G657A1

Central Strength Member : FRP strength member/steel wire

Outer Jacket Material : Single PE Jacket

Fiber Protection : Water-blocking gel

Csm : FRP

Storage Temperature : -40℃~+85℃

Amor Layer : Aluminum Tape

Strength Member : Aramid Yarn

Cable Diameter : 10.5mm

Applicaion : Aerial

Sample Status : In stock

Warranty Period : 25 years

Strength Member Material : FRP/ARAMID YARN

Contact Now

ASU Optical Cable | Non-Armored Uni-Tube Outdoor Fiber Cable with FRP Strength Members – High Bandwidth & Reliable Transmission

Product Overview

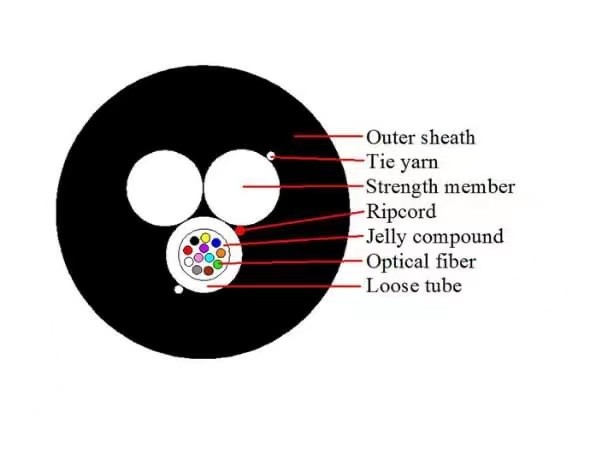

ASU (Non-Armored Uni-Tube) optical cable is designed for reliable and cost-effective outdoor fiber optic communication. The fibers are housed in a loose buffer tube filled with moisture-blocking jelly to prevent water ingress and migration. The cable is covered with a durable black polyethylene (PE) outer jacket for superior environmental protection. Two embedded strength members—either FRP (Fiber Reinforced Plastic) or metallic wires—provide excellent tensile strength, ensuring stable performance even in challenging environments.

Key Features & Benefits

  1. High-Performance Optical Fiber – Utilizes special low-bend-sensitivity fibers that offer high bandwidth and excellent transmission properties, supporting long-distance and high-speed communication.

  2. Enhanced Mechanical Strength – Two parallel FRP or metallic strength members deliver superior crush resistance and tensile performance, protecting the fibers during installation and operation.

  3. Lightweight & Practical Design – Simple, compact cable structure allows for easy handling, transport, and installation, reducing overall project costs.

  4. Easy Stripping & Splicing – Innovative flute design simplifies fiber access, splicing, and maintenance, saving time in the field.

  5. Safety & Compliance – Low Smoke Zero Halogen (LSZH) and flame-retardant sheath minimizes toxic emissions during fire, ensuring a safer installation environment.

  6. Weather & UV Resistant – Outer PE jacket provides strong protection against moisture, sunlight, and harsh outdoor conditions, ensuring long service life.

Applications

  • Power Line Installation – Ideal for aerial installation on the same pole with new or existing power lines.

  • High Electromagnetic Interference Areas – Designed to perform in regions with strong electric fields and high thunderstorm frequency.

  • Long-Span Communication – Excellent choice for long-distance transmission projects and rural broadband deployment.

  • Industrial & Utility Networks – Suitable for power utilities, transportation systems, and communication backbone networks.

  • FTTx & Broadband Projects – Supports fiber-to-the-home (FTTH) and other last-mile network connections.

4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span

Specification:

item value
Model Number ASU
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Cable type Outdoor All dielectric self-supporting aerial cable
Number of Conductors ≥ 10
Fiber count 2-24Cores
Fiber Type G652D Single mode or as your request
Fiber color Blue, Orange, Green, Brown,etc
Central strength member FRP
Loose tube Jelly filled
Loose tube Material PBT
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Installation Self-supporting aerial
Span 80-150 meters
operating temperature -40 to +70
Certification CE/ROHS/ISO9001 /ANATEL

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is located on the 2nd Floor of Building B3, No. 43 Lixin 9th Road, Xintang Town, Zengcheng District, Guangzhou, Guangdong, China. We are a high-tech joint-stock enterprise integrating R&D, production, and sales of optical fiber cables.

Our company focuses on manufacturing a wide range of optical cables with 2–288 cores, designed to meet diverse network and communication needs. Guided by our core values—integrity, speed, flexibility, efficiency, and innovation—we are committed to delivering high-quality products and services that exceed customer expectations.

We uphold the principle that customer satisfaction is the ultimate measure of our success. With competitive pricing, strict quality control, and professional service, we aim to build long-term partnerships and create mutual growth with our clients worldwide.

We sincerely welcome global customers to visit our factory, discuss cooperation opportunities, and work together for a prosperous future.

4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span

WHY CHOOSE US:

4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span

Certification:

4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span

FAQ

1. Who Are We?
We are Guangzhou Jiqian Fiber Optic Cable Co., Ltd., located in Guangdong, China. Established in 2017, we focus on global fiber optic cable sales, serving customers in:

  • Africa (33%)

  • South America (17%)

  • Western Europe (17%)

  • Middle East (17%)

  • Southeast Asia (9%)

  • South Asia (7%)

Our team consists of 11–50 experienced professionals dedicated to providing quality products and services.

2. How Do We Ensure Quality?

  • Pre-production sample provided before mass production

  • 100% final inspection before shipment

3. What Can You Buy From Us?

  • Outdoor / Indoor Fiber Optic Cables

  • FTTH Drop Cables

  • Communication Cables

4. What Services Do We Provide?

  • Delivery Terms: FOB, EXW

  • Payment Options: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash

  • Currency: USD, CNY

  • Languages: English, Chinese

5. What Is the Minimum Order Quantity (MOQ)?

  • MOQ: 1 km

6. Can I Get a Sample?

  • Yes! We provide free samples. You only need to cover express shipping costs.

7. Do You Accept OEM/ODM Orders?

  • Yes. As a manufacturer with an in-house engineering department, we can produce according to your specifications.

8. What Is the Delivery Time?

  • Normally 3–7 days after order confirmation, depending on quantity.

We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
