Underground Armored SM G652D 48 96 144 Core Fiber Optical Cable

  • 1
  • 2
  • 3

Brand Name : Jiqian

Model Number : GYTS

Certification : ISO9001/CE/ROHS/FCC

Place of Origin : CHINA

MOQ : 1000m

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 1000km per month

Delivery Time : Usually 5-7 days

Packaging Details : wooden drum

Fiber type : SM G652D

Application : Aerial/duct

Number of conductors : 4-288 Core

Structure : Stranded Loose tube

Operating temperature : -40 ~ +60 C

Factory : Yes

OEM : Available

Armoured type : Yes

Fiber brand : YOFC/Fiberhome

Contact Now

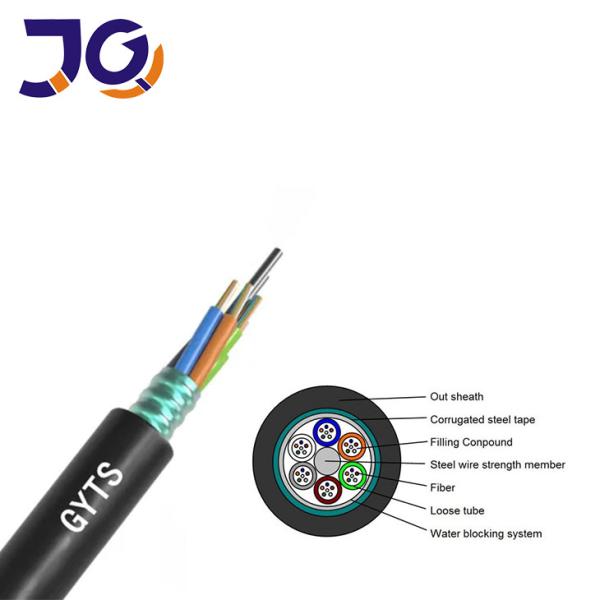

GYTS optical cable is a communication cable with the same transmission speed as light. It has wide bandwidth, fast transmission speed, good confidentiality, anti-electromagnetic interference, good insulation, long life and good chemical stability. GYTS optical cable is mainly divided into two types: GYTS multi-mode fiber optical cable and GYTS single-mode fiber optical cable.

Features:

1.tensile strength

2.wear resistance

3.impact resistance

Underground Armored SM G652D 48 96 144 Core Fiber Optical Cable

Underground Armored SM G652D 48 96 144 Core Fiber Optical Cable

G652D Fiber Optic:

Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260
Attenuation Coefficient 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
Proof stress level kpsi ≥100

Mechanical and Environmental Characteristics

Item Unit Specifications
Tension(Long Term) N 800
Tension(Short Term) N 2000
Crush(Long Term) N/10cm 500
Crush(Short Term) N/10cm 1500
Min. Bend Radius(Dynamic) mm 20D
Min.Bend Radius(Static) mm 10D
Installation Temperature ℃ -40～+60
Operating Temperature ℃ -40～+70
Storage Temperature ℃ -40～+70

Repeating bending

Load:250N;number of cycles:30 No obvious addition

attenuation, no fiber break and no cable damage.

Torsion

Load:250N; number of cycles:10; twist angle:±90° No obvious

addition attenuation, no fiber break and no cable damage.

Impact

Impact energy:450g×1m; radius of hammer head:12.5mm;

number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.

COMPANY PROFILE:
Underground Armored SM G652D 48 96 144 Core Fiber Optical Cable
1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world
Exhibition:
Underground Armored SM G652D 48 96 144 Core Fiber Optical Cable
FAQ:
Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you provide OEM or ODM
A: Yes

Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock

Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
