MGXTSV LSZH Armored Mining Fiber Optic Cable — Fire Retardant & Anti-Rodent Protection

MGXTSV Anti-Rodent Flame Retardant Mining Fiber Cable

Product Description

1. The MGXTSV mining optical cable is a specialized communication fiber optic cable designed for use in coal mines, gold mines, iron ore mines, and other mining environments.

2. It retains all standard fiber optic cable features while adding critical enhancements like flame retardancy and rodent resistance to meet the unique safety needs of mining sites. This ensures reliable communication even during emergencies. The cable meets the safety certification requirements mandated by the State Coal Mine Safety Supervision Administration.

3. Since there are no specific standards for mines like gold or iron ore, their cables are generally designed and produced following the high-performance standards established for coal mine optical cables.

4. MGXTSV is currently the only communication optical cable model certified by mining safety standards, intended for use in mines, tunnels, shafts, and similar settings.

Features

1. Strong mechanical and temperature resistance.

2. High-strength loose tube offers excellent waterproofing and durability.

3. Special filling compound protects fibers, providing good crush resistance and flexibility.

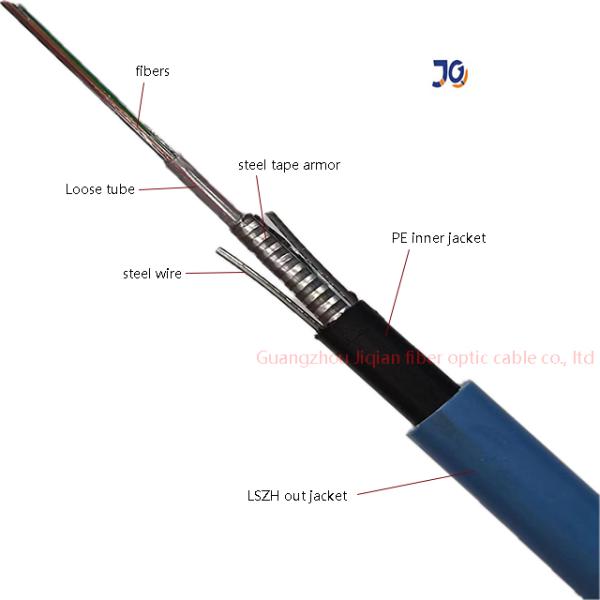

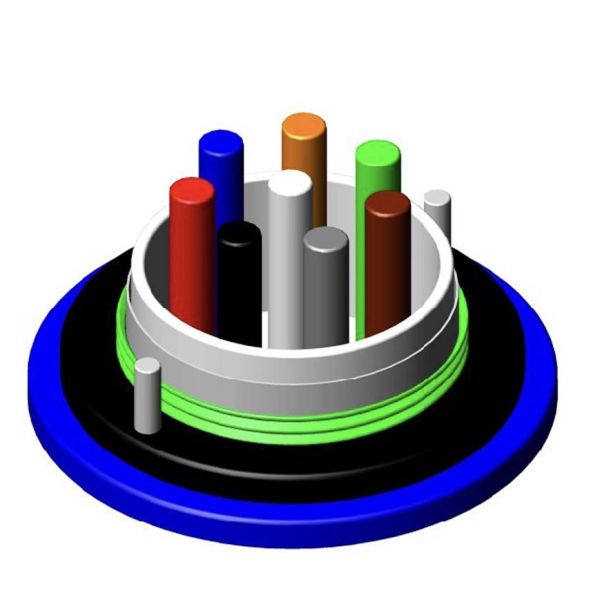

4. Watertight design includes:

   • Steel wire central strength member.

   • Loose tube filling compound and full core filling.

   • PSP layer enhancing moisture and rodent protection.

   • Water-resistant materials preventing longitudinal water penetration.

   • Blue flame-retardant PVC second sheath for fire safety.

Applications

1. Utilizes microtubule technology, suitable for backbone, access, and fiber-to-the-home networks.

2. Cost-effective cabling solution, ideal for upgrading networks in older urban areas and buildings.

3. Complies with Standard MT386-1995 for flame retardancy testing and certification for coal mine cables

Optical Characteristics

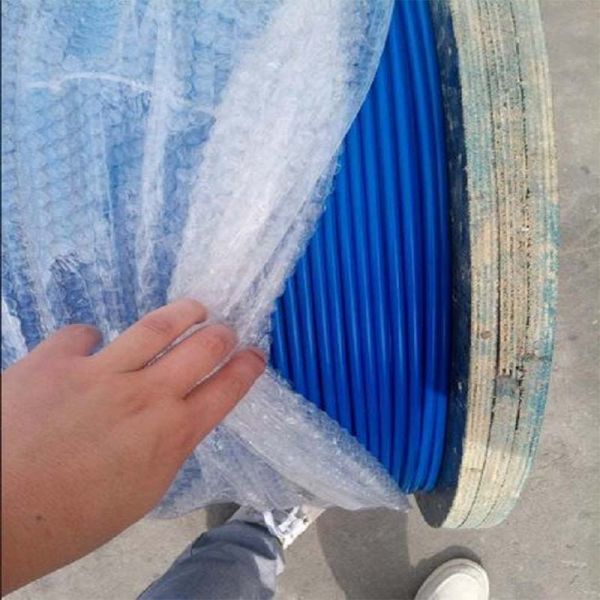

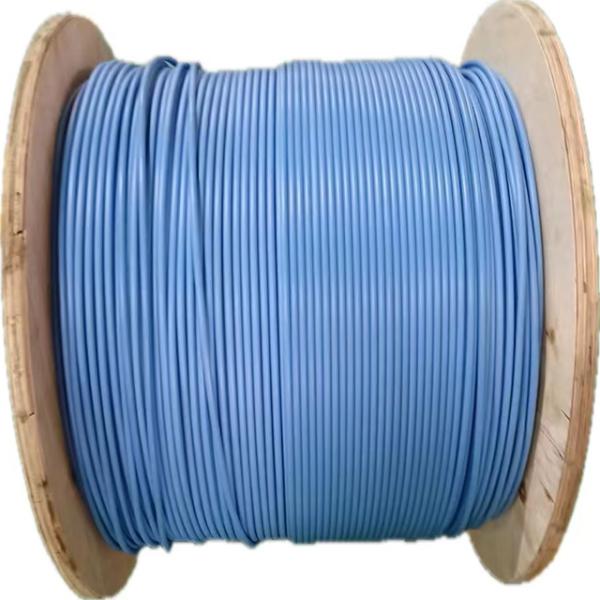

Detail product pictures

Mining application

factory shows
