UV Jacket Figure 8 Overhead Installation 48 Cores Fiber Optic Cable

Brand Name : JQ

Model Number : GYTC8S/GYXTC8S

Place of Origin : Guangzhou China

Certification : ISO9001

Outer Diameter : 7.0mm-16.0mm

Cladding Diameter : 125.0±0.1

Water Blocking System : Filling Compound

Fiber Cores : 4-144cores

Weight : 90kg/km

Self Suporting : Stranded Steel Wire

Jacket Material : LSZH

Jacket : UV PE

Contact Now

Product Description:

Product Overview

UV Jacket Figure 8 Overhead Installation 48 Cores Fiber Optic Cable

Applications

Telecommunications
Broadband networks
CATV networks
LAN/WAN systems
Industrial control systems

Overall, our Fiber Optic Cable Wire is a versatile and efficient solution for various data communication needs. Its high-quality construction and advanced features make it a top choice for reliable and high-performance networks.

Technical Parameters:

Technical Parameters
Product Name	Figure-8 self-supporting optical cable
Fiber Optic Cable	Fig.8 Fiber Optic Cable
Cable Sheath	PE
Bend Radius	20x Cable Diameter
Jacket	UV PE
Jacket Material	PE/MDPE/HDPE
Bending Radius	20D
Armored Material	Aluminum Tape or Steel Tape
Cladding Diameter	125.0±0.1
Fiber Cores	4-144 cores
Fiber Diameter	9/125μm
Water Blocking System	Filling Compound

Other products:

UV Jacket Figure 8 Overhead Installation 48 Cores Fiber Optic Cable

Brand Name: JQ
Model Number: GYTC8S/GYXTC8S
Place of Origin: Guangzhou, China
Outer Diameter: 7.0mm-16.0mm
Bend Radius: 20x Cable Diameter
Warranty: 25 Years
Cable Use: Outdoor
Self Supporting: Stranded Steel Wire

Packing and Shipping:

We take great care in packing and shipping our Figure 8 Fiber Optic Cable to ensure its safe and timely arrival. If you have any questions or concerns about your order, please don't hesitate to contact us.

Product Tags:

48 Cores Fiber Optic Cable

UV Jacket Fiber Optic Cable

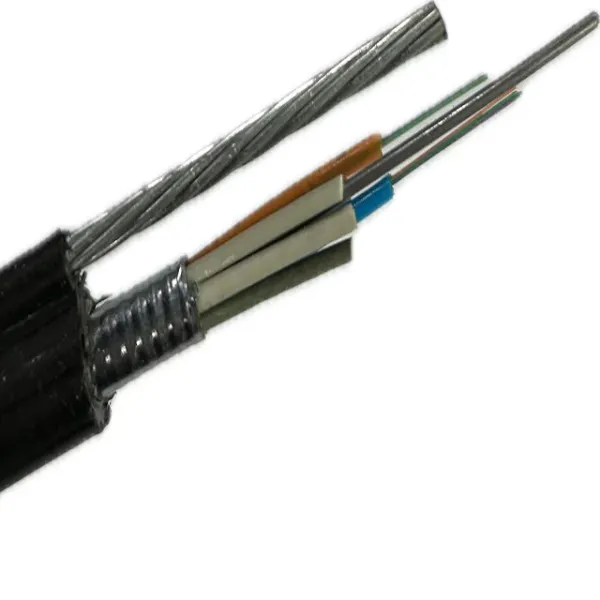

UV Jacket Figure 8 Overhead Installation 48 Cores Fiber Optic Cable Images
